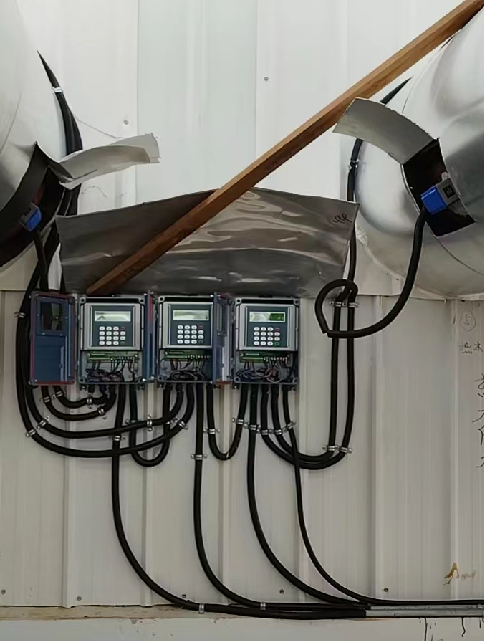

Clamp on ultrasonic flow meter application

External mounted ultrasonic flowmeter is a non-contact flow measurement instrument that is easy to install, maintain, and measures accurately.

1、 Easy installation without damaging the pipeline structure

No need to cut off or open holes: simply stick the sensor to the outer wall of the pipeline without cutting off the pipeline or stopping installation

Wide range of applicable pipeline types: capable of measuring pipes made of metal (such as steel, cast iron), plastic (such as PVC, PE), glass and other materials.

Flexible installation location: Sensors can be installed at the top, side, or bottom of pipelines to adapt to complex on-site layouts

2、 Non contact measurement with no additional resistance loss

Not in contact with the measured fluid: The sensor has no direct contact with the fluid

No pressure loss and energy saving: The measurement process does not change the flow state of the fluid in the pipeline, there is no pressure loss, and it meets the requirements of energy saving and environmental protection

3、 Low maintenance cost and long service life

No vulnerable parts: The sensor has no mechanical moving parts and is not easily worn or aged after long-term use

Long term high reliability: Under normal installation and use conditions, the equipment can have a service life of more than 10 years, especially suitable for industrial environments with long-term continuous operation.
