Radar Flow And Level Meter: Which Measures Water Flow Rate And Liquid Level In Open Channels

Radar Flow and Level Meters: Non-Contact Precision for Open Channel Monitoring

Radar-based measurement systems have emerged as a game-changer in the realm of liquid monitoring, particularly in applications requiring accurate flow and level readings in open channels. With advancements in non-contact technology, industries are now equipped to gather precise measurements without any physical interaction with the medium—a critical benefit when dealing with sediment-laden water or environments where sensor placement is difficult or impractical.

One of the key strengths of radar measurement lies in its independence from the physical properties of the liquid. Unlike traditional sensors, radar systems are unaffected by fluctuations in temperature, density, viscosity, or conductivity. This results in consistently accurate readings under varying conditions. The flow rate is determined using the formula Q = V × A, where the velocity (V) and the cross-sectional area (A) of the flow are calculated to provide real-time, reliable data.

Recent developments in mixed-frequency radar have further improved water system monitoring capabilities, enabling integrated flow meters to function efficiently in complex or demanding environments. These systems have proven particularly valuable in sectors like wastewater treatment, hydrological studies, and industrial fluid handling—areas where environmental challenges often make contact-based measurements unreliable or impossible.

Among such innovations is the radar flowmeter equipped with both level and velocity sensing. This unit operates continuously, offering real-time analysis of both flow rate and liquid level. Its radar-based, non-intrusive operation ensures performance even in harsh surroundings where conventional tools often fail. The dual-functionality—combining flow and level measurements in a single device—not only increases efficiency but also reduces maintenance costs and equipment footprint.

This article delves into the technical foundation behind radar flowmeters, from the Doppler shift used to detect surface velocity to advanced algorithms that calculate flow based on real-time level data. These instruments are vital tools for modern fluid management strategies, especially when operational environments demand high precision without medium contact.

Radar Flowmeter: What It Is and How It Works

Radar flowmeters represent a major advancement in hydrological monitoring technology. These sophisticated devices use mixed-frequency radar waves to deliver highly accurate, real-time measurements—without any contact with the water surface.

Non-Contact Mixed-Frequency Radar Explained

The system integrates two radar frequencies: a 24GHz band for measuring surface velocity and a 76–81GHz W-band for detecting water levels. By operating across multiple frequencies, the device avoids signal interference and ensures precise monitoring of key parameters such as flow rate and water depth simultaneously.

The velocity radar operates based on the Doppler effect. It emits electromagnetic waves toward the water surface and calculates flow speed based on the frequency shift of the reflected signals. Meanwhile, the high-frequency radar component measures the vertical distance to the water surface with accuracy up to ±1mm.

Since the flowmeter does not need to touch the water, it eliminates many of the maintenance and reliability issues associated with traditional submerged sensors. It remains accurate even in challenging environments, such as those with high sediment content, floating debris, or chemical contaminants.

Integrated Flow Rate and Water Level Measurement

The system integrates a radar water level gauge with a surface velocity radar flowmeter in a single, compact device. It collects surface velocity data using the Doppler principle, and calculates average flow velocity through built-in hydraulic models. Simultaneously, it determines the cross-sectional area of the waterway based on measured water levels and preset channel profiles. The result is highly accurate, real-time flow rate data without any need for physical contact with the water.、

Applications Across Harsh Environments

This advanced radar meter is ideal for a wide range of applications, including hydrological monitoring, flood control, urban drainage, irrigation channels, and environmental water management. Thanks to its IP68-rated waterproof enclosure, it operates stably even during heavy rainfall or flooding, and remains unaffected by harsh environments, from -35°C cold to 70°C heat.

Unlike traditional sensors that become fouled or damaged in silt-laden or chemically contaminated water, this radar-based, non-contact meter maintains long-term accuracy with minimal maintenance. It’s especially suitable for open channels, rivers, and drainage systems where reliable data collection is crucial.

Remote Monitoring and Communication Features

Equipped with Modbus RTU communication protocol and optional Bluetooth connectivity, the device is easy to integrate with SCADA systems or remote data acquisition platforms. This supports remote diagnostics, configuration, and real-time monitoring, making it an excellent choice for remote or unmanned locations.

From Surface Velocity to Volume Flow: Cross-Sectional Integration

Radar-based flowmeters do more than just detect how fast water moves across the surface. To calculate the total volumetric flow, they must also determine how much water is actually moving — that is, the cross-sectional area of the flow. This is where radar level measurement plays a critical role.

The system uses a non-contact radar level sensor to continuously measure the water level (or depth). By matching this real-time water level with pre-calibrated cross-sectional channel geometry (stored during initial setup), the system calculates the wetted cross-sectional area.

Then, using this formula:

Q = A × V

Where:

• Q is the flow rate (e.g., cubic meters per second),

• A is the calculated cross-sectional area,

• V is the average flow velocity (derived from surface velocity with correction factors),

the meter computes the instantaneous discharge with high accuracy, without requiring any part of the sensor to be submerged.

Advantages Over Traditional Flow Measurement Methods

Radar-based flowmeters offer several critical advantages over submerged sensors such as propeller-type meters or pressure transducers, especially in open channel applications:

1. No Contact With Water: Prevents damage or malfunction due to sediment, algae, corrosive agents, or chemicals.

2. Stable Operation in Harsh Environments: Maintains accuracy in flooding, freezing, or extremely hot environments — ideal for desert drainage systems or monsoon-prone regions.

3. Low Maintenance: With no moving parts or immersion, there's virtually no risk of clogging or corrosion, reducing operational costs.

4. Real-Time, Remote Monitoring: Paired with Modbus RTU and wireless Bluetooth connectivity, data can be logged or transmitted in real time to SCADA systems or mobile apps.

5. Flexible Installation: Works in rectangular, trapezoidal, or natural river cross-sections. Also performs well in partially filled culverts or stormwater channels.







Application Success in Middle Eastern Water Infrastructure

Countries across the Middle East are increasingly adopting radar-based flow and level measurement systems to enhance water resource management and stormwater monitoring.

Typical use cases include:

• Urban Drainage Networks in Gulf Cities: Monitoring flow through open concrete channels in cities like Dubai or Doha, where occasional intense rainfall causes rapid surges.

• Wadi Flood Control Systems: Many desert valleys (wadis) experience sudden flooding. Installing radar meters in these dry riverbeds allows for immediate detection and alerting of flow events.

• Wastewater Discharge Monitoring in Industrial Zones: Radar meters are used to ensure industrial effluent complies with environmental regulations, especially where water contains oil residues or chemical pollutants.

• Irrigation Canal Optimization: In countries like Saudi Arabia and Jordan, canal networks powered by gravity or pumps use radar sensors to manage distribution volume efficiently.




Installation and Deployment Considerations

Radar flowmeters are typically installed on bridges, culverts, or purpose-built poles over the channel. Key points during deployment include:

• Ensuring the sensor has a clear line-of-sight to the water surface.

• Correctly aligning the radar beam angle relative to water flow direction to capture accurate Doppler readings.

• Calibrating the system with actual channel geometry, including depth-width profiles at various flow levels.

• Setting up data logging and communication features (local display, SD card, Bluetooth, or remote SCADA link).

Once installed, the system can operate autonomously for years with minimal upkeep, especially useful in remote or hard-to-access sites.

Built for Tomorrow’s Water Monitoring Needs

Radar flowmeters and level sensors represent the future of non-invasive, precision water measurement. Whether managing scarce water resources, mitigating flood risks, or enforcing wastewater regulations, this technology offers dependable, data-driven insight for smarter decision-making.

How Radar Measures Liquid Level

Radar level measurement operates using a distinct approach compared to velocity detection. The sensor emits modulated radar pulses, typically in the 77–81 GHz W-band, directed toward the water surface. The system measures the time delay between the transmitted signal and the received echo—a method known as the time-of-flight principle. This elapsed time is then converted into an exact distance measurement, allowing the device to calculate the water level with high precision.

The modulation technique used ensures that measurements remain stable and reliable, unaffected by external factors such as air temperature, humidity, or other atmospheric conditions, which commonly interfere with other sensor types.

Simultaneous Measurement of Liquid Level, Flow Rate, and Velocity Using Multi-Frequency Radar

Multi-frequency radar technology enhances flow measurement accuracy by transmitting signals across different frequency bands simultaneously. This capability allows the system to measure several key parameters—such as liquid level, flow rate, and surface velocity—without signal interference.

Typically, modern radar flowmeters utilize the K-band frequency to capture surface velocity data, while the higher-frequency W-band is dedicated to precise liquid level detection. By combining these measurements, the device delivers continuous, real-time data analysis for comprehensive flow monitoring.

The dual-frequency approach also adds a layer of redundancy. Cross-checking data from different frequencies improves overall measurement reliability and helps identify anomalies, making these systems highly dependable even in challenging environmental conditions.

IP68 Waterproof Design and Flexible Mounting Options

The device features a rugged, sealed epoxy housing that meets the IP68 waterproof standard, making it ideal for underwater installation and harsh outdoor environments. A standard 15-meter cable comes with the unit, with options to extend cable length up to 500 meters for installations distant from monitoring or control stations.

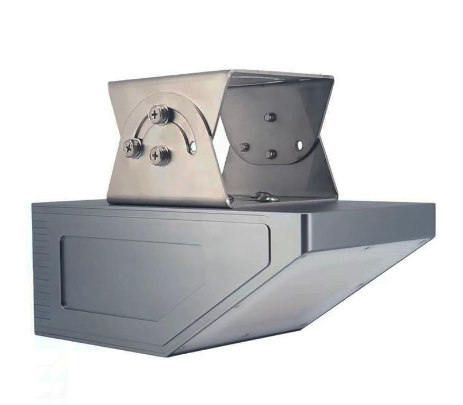

Multiple mounting options allow the flow and level meter to adapt to various site requirements. Wall mounting is supported via drill-and-screw flanges, while swivel arms are available in 140mm and 390mm lengths for precise sensor positioning. For pipe installations, specialized mounting flanges accommodate pipe diameters ranging from 50mm to 275mm. Additionally, rung mounting options fit bars with diameters between 15mm and 26mm.

To ensure optimal sensor alignment—critical for measurement accuracy—the radar sensor includes a built-in spirit level, simplifying setup and calibration in the field.

Modbus RTU Communication and Bluetooth Support for Easy Debugging

The device supports Modbus RTU, a widely used communication protocol in industrial automation, ensuring seamless integration with existing control and monitoring systems. Reliable RS485 connectivity enables stable data transmission over long cable runs, making it suitable for large-scale installations.

Equipped with built-in Bluetooth, the flow and level meter allows technicians to perform wireless diagnostics, configuration, and real-time data monitoring directly from smartphones or tablets. This wireless access eliminates the need for manual adjustments at hard-to-reach sensor locations—ideal for meters mounted high above waterways or in confined spaces.

Flexible Power Supply Options for Remote Installations

For remote or off-grid sites, the meter supports multiple power sources to ensure continuous operation. Options include:

• Alkaline lantern batteries

• D-cell batteries

• Lithium thionyl chloride batteries, which perform reliably in low-temperature conditions

Battery life ranges from 8 to 18 months, depending on sensor type and measurement frequency.

For installations with available external power, the device accepts 9–15 VDC input, with some models compatible with a wider range of 7–28 VDC. This flexibility allows connection to solar panels or other renewable energy sources, making it an excellent solution for locations without reliable mains electricity.

Conclusion: Advanced Measurement Solutions for Modern Water Management

Radar flow and level measurement technology has transformed how water resources are monitored and managed across a wide range of industries. Non-contact radar systems overcome many of the limitations inherent in traditional submerged sensors, particularly in environments with high sediment loads or chemical contamination.

The use of dual-frequency radar—combining lower-frequency signals for velocity measurement and higher-frequency signals for level detection—creates a comprehensive and reliable monitoring solution. This approach minimizes maintenance requirements while delivering consistent, accurate data even in extreme temperatures ranging from -35°C to 70°C.

Designed with a durable IP68 waterproof enclosure and versatile mounting options, these devices can be installed in previously inaccessible or harsh locations. Additionally, support for communication protocols such as Modbus RTU, along with wireless Bluetooth capabilities, ensures seamless integration with existing control systems and simplifies field maintenance.

These advancements in radar measurement represent a significant leap forward for industries requiring precise, dependable liquid flow and level monitoring without the complications of direct contact. By combining accuracy, robustness, and connectivity in an affordable package, modern radar flow and level meters are setting new standards for water management.

For tailored solutions and expert advice on implementing radar-based flow and level measurement technology, please contact Beijing Gallop group.

Frequently Asked Questions (FAQs)

Q1. How does a radar flow meter measure water flow?
A radar flow meter transmits microwave signals toward the water surface and detects the reflected waves. By analyzing the frequency shift of the returned signal—known as the Doppler effect—it calculates the surface velocity of the water. This non-contact method enables accurate flow measurement without physically touching the liquid.

Q2. What are the benefits of using radar technology for water level measurement?
Radar technology provides continuous, non-contact water level measurement with high precision. It performs reliably across diverse environmental conditions and is unaffected by changes in temperature, pressure, or vapor density. This makes it well-suited for challenging environments where conventional sensors often struggle.

Q3. Can radar flow meters operate effectively in sediment-heavy or contaminated water?
Yes. Since radar flow meters do not require contact with the water, they avoid common problems associated with submerged sensors—such as fouling, clogging, or corrosion—making them ideal for waters with high sediment loads or chemical contamination.

Q4. What principle underlies radar level measurement?
Radar level measurement is based on the time-of-flight principle. The device sends microwave pulses toward the water surface and measures the time taken for the pulses to return after reflection. This elapsed time is then converted into an accurate distance measurement, determining the water level.
