Wastewater treatment plants face complex challenges in accurately measuring flow rates amid variable fluid compositions, suspended solids, and harsh environmental conditions. Traditional flow measurement technologies, such as ultrasonic or mechanical meters, often struggle with reliability, maintenance demands, or accuracy under these tough conditions. Enter radar flow meters—a cutting-edge solution that is transforming flow measurement in wastewater treatment facilities worldwide.
This article delves into why radar flow meters are revolutionizing wastewater plant operations by offering unmatched precision, durability, and cost-efficiency. We will explore their working principles, advantages over conventional technologies, key applications, and best practices for integration into modern wastewater systems.
1. Understanding Radar Flow Meters: How They Work
Radar flow meters employ electromagnetic wave principles, specifically using microwave radar signals, to measure the velocity of fluid or slurry flowing through open channels, pipes, or weirs. Unlike traditional flow meters requiring direct contact with the fluid, radar flow meters operate non-invasively, sending radar waves toward the fluid surface and calculating flow velocity based on the Doppler shift or transit time of the reflected signals.
Two main types commonly used in wastewater applications are:
Doppler Radar Flow Meters: These detect frequency shifts in the reflected radar waves caused by suspended particles or bubbles in the flow, making them ideal for fluids containing solids.
Frequency Modulated Continuous Wave (FMCW) Radar Flow Meters: These emit a continuously varying frequency signal to provide highly accurate distance and velocity measurements, even with low or no suspended solids.
Because wastewater typically contains solids, the Doppler radar type is especially effective, providing reliable readings where other sensors fail.
2. Why Radar Flow Meters Excel in Wastewater Treatment Plants
A. Non-Intrusive, Maintenance-Free Operation
Traditional flow meters like magnetic or mechanical types require direct contact with wastewater, exposing them to corrosion, clogging, and wear. Radar flow meters, installed above the fluid surface, avoid these issues entirely. This non-contact measurement significantly reduces maintenance costs and downtime, which are critical in continuous wastewater processing.
B. Accurate Measurement in Harsh Conditions
Wastewater can be turbulent, contain varying solids concentrations, and fluctuate in level and velocity. Radar flow meters remain accurate despite these factors because they measure velocity remotely and are not affected by fluid conductivity, temperature, or pressure changes.
C. Versatility Across Different Flow Environments
Radar flow meters can be installed in open channels, partially filled pipes, flumes, and weirs—common in wastewater facilities. Their ability to adapt to different geometries without complex recalibration is a major advantage.
D. Real-Time Data and Integration with SCADA Systems
Modern radar flow meters offer digital outputs compatible with SCADA and IoT monitoring platforms. This integration facilitates real-time flow monitoring, alerts for anomalies, and data analytics for process optimization.
3. Key Applications of Radar Flow Meters in Wastewater Plants
Influent and Effluent Flow Monitoring: Accurate measurement of incoming wastewater and treated water discharge ensures regulatory compliance and operational efficiency.
Sludge Flow Measurement: Monitoring thickened sludge streams is critical for process control; radar meters handle high solids content reliably.
Stormwater Overflow Monitoring: Radar sensors can be mounted above stormwater channels to monitor flow without risk of damage during high flow events.
Industrial Wastewater Streams: Radar meters tolerate variable chemistry and suspended solids, making them suitable for industrial effluents.
4. Advantages Over Traditional Flow Measurement Technologies
| Feature | Radar Flow Meters | Traditional Technologies |
|---|---|---|
| Contact with Fluid | Non-contact (above surface) | Contact (in-pipe or submerged) |
| Maintenance Needs | Minimal, no fouling or clogging | High, prone to clogging and wear |
| Accuracy in Dirty Fluids | High accuracy despite solids and turbulence | Variable, often inaccurate |
| Installation Flexibility | Easy to retrofit on open channels or pipes | Often requires pipe modification |
| Durability | Resistant to corrosion, chemical damage | Prone to damage in harsh environments |
| Integration | Compatible with digital monitoring platforms | Often requires additional equipment |
5. Installation Best Practices and Considerations

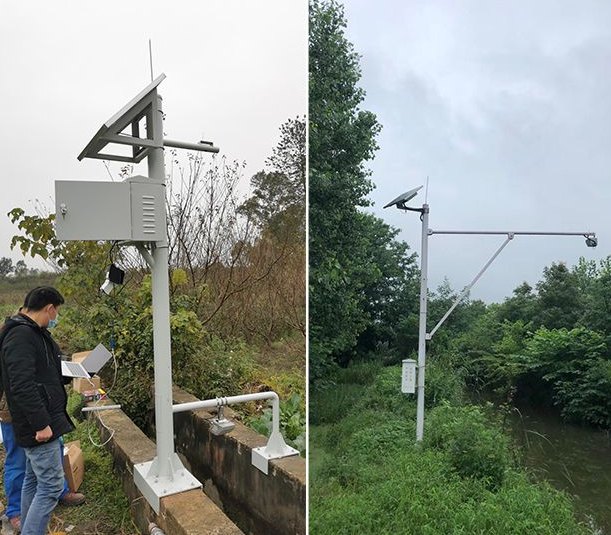

Proper Mounting Height: Radar sensors must be installed at optimal heights (typically 0.3 to 1.5 meters above the fluid surface) for best performance.
Stable Mounting Structure: Ensure the mounting is vibration-free to avoid signal disturbances.
Environmental Protection: Although radar meters are weather-resistant, shielding from extreme elements increases longevity.
Calibration and Verification: Periodic verification against manual flow measurements ensures continued accuracy.
Clear Line of Sight: Remove obstacles above the flow path to prevent signal interference.
6. Future Trends: Smart Radar Flow Meters and Digital Wastewater Management
Emerging radar flow meters incorporate advanced features such as:
Wireless Connectivity: Facilitating remote monitoring in hard-to-access sites.
Machine Learning Algorithms: Enhancing anomaly detection and predictive maintenance.
Multi-Parameter Sensing: Combining flow measurement with level, velocity, and quality sensors for comprehensive insights.
These innovations empower wastewater plants to transition towards fully automated, data-driven operations.
Conclusion: Revolutionizing Wastewater Flow Measurement with Radar Technology
Radar flow meters represent a paradigm shift in wastewater plant management. Their non-intrusive design, robustness against harsh fluids, and seamless integration with modern control systems translate into more reliable data, reduced maintenance, and greater operational efficiency. Facilities upgrading to radar flow technology position themselves at the forefront of sustainable and intelligent wastewater management.
Beijing Gallop Group is a leading provider of advanced radar flow meters tailored for wastewater treatment applications. With cutting-edge technology, rigorous quality control, and dedicated technical support, Beijing Gallop Group helps wastewater plants optimize flow measurement accuracy and operational uptime. Partner with us to experience the future of wastewater management—where precision meets reliability.
