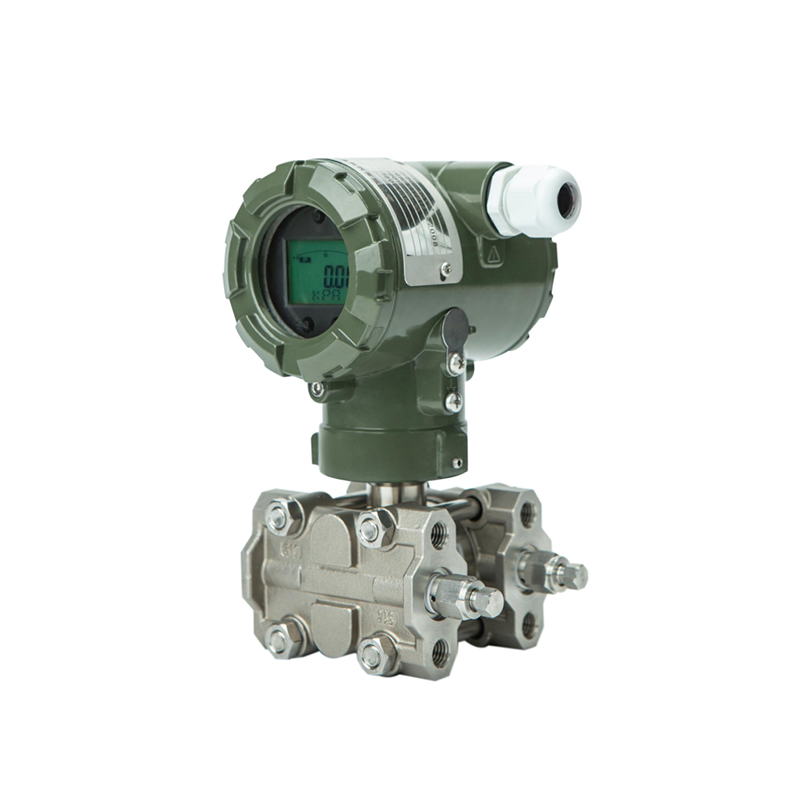

Replace Guesswork With Real Filter Loading Data Filter Differential Pressure Transmitter is designed for HVAC, process gas, water and liquid filtration systems. Time-based filter replacement wastes usable life or misses rapid fouling, while blocked impulse lines can imitate a healthy or failed filter. Continuous differential pressure shows the resistance across the element so maintenance can be based on condition and process demand. See Fouling Before Flow or Quality Suffers The transmitter compares pressure at its high and low ports and converts the difference into a stable process signal. Differential pressure can indicate filter loading, infer flow across a primary element or measure level in pressurized vessels. Gallop lists accuracy choices down to ±0.075 percent, stability of ±0.1 percent over three years, LCD or OLED displays, IP67 housing and a selection of 316L, tantalum, Hastelloy C or Monel measuring diaphragms. Explosion-protected configurations are also listed. The calibrated span should cover clean-filter pressure drop and the maximum allowable loading with enough resolution for meaningful trends. This page can naturally support buyer terms such as differential pressure transmitter, smart pressure measurement, filter monitoring, remote diaphragm seal and HART process transmitter. Protect the Measurement From Plugged Lines Provide normal flow, clean and dirty differential, static pressure, temperature, medium and tap locations; use compatible manifolds and keep impulse lines short, equal and clear. Configure local indication, 4-20 mA or HART reporting and high differential alarms, and interpret pressure drop together with flow because resistance changes with throughput. Impulse-line plugging, trapped gas or liquid, unequal heat tracing and incorrect zero elevation can dominate the error budget. Final performance must be confirmed for the assembled transmitter, seals and accessories. The company reports customers across Asia, North America and Europe and offers multiple materials, structures and outputs. Use the application data sheet to turn that flexibility into one controlled, auditable model selection.
