Water & Wastewater Flow Measurement Solution Overview
Water and wastewater treatment systems require different flow measurement technologies for raw water, sewage, sludge, reclaimed water, chemical dosing, aeration air and steam. Electromagnetic flowmeters are the primary choice for conductive wastewater and sludge because they have no moving parts and can handle suspended solids and flocs. Turbine flowmeters are more suitable for clean water, reclaimed water and low-impurity chemical liquids. Vortex flowmeters are mainly used for saturated steam, compressed air and other clean gas conditions.
This solution is intended for municipal wastewater treatment plants, industrial wastewater stations, waterworks, reclaimed-water reuse stations and pump-station pipe networks. It helps engineers, system integrators and project purchasers select the appropriate flowmeter according to process section, medium characteristics, pipe conditions, power supply, communication method and maintenance requirements.
Related products:Electromagnetic Flow Meter |Turbine Flow Meter |Vortex Flow Meter |Flow Measurement Instruments
DN600 Underground Pipeline Selection Note
For a DN600 underground water-supply or wastewater pipeline, an electromagnetic flowmeter should normally be evaluated first when the liquid is conductive. Large-diameter pipelines can use a full-bore or insertion electromagnetic meter depending on accuracy, installation and project-cost requirements. For underground or humid installations, the meter structure, cable sealing and required protection level should be confirmed according to the actual installation environment before final selection.
Electromagnetic vs Turbine vs Vortex Flowmeters
| Flowmeter Type | Applicable Media | Typical Applications | Main Advantage | Main Limitation |
|---|---|---|---|---|
| Electromagnetic Flowmeter | Conductive liquids ≥5μS/cm, wastewater, sewage and sludge containing solids or flocs | Raw water inlet, biochemical recirculation, secondary sedimentation effluent and sludge pipelines | No moving parts, low blockage risk and good adaptability to dirty conductive liquids | Not suitable for gas, oil or extremely low-conductivity pure water |
| Turbine Flowmeter | Clean, low-impurity liquids | Clean water, reclaimed water, trade measurement and low-flow chemical dosing | High accuracy, fast response and good cost-effectiveness for clean liquids | Impellers can jam or wear in sediment, sludge and high-solid media |
| Vortex Flowmeter | Gas, saturated steam and clean low-pressure liquids | Aeration air, compressed air and plant steam pipelines | No moving parts and suitable for gas and steam flow measurement | Impurities, viscous media, heavy bubbles and fouling can reduce measurement stability |
Application Scenarios by Process Section
Industries: Municipal wastewater treatment plants, industrial wastewater stations, waterworks, reclaimed-water reuse stations and pump-station pipe networks.
| Process Section | Medium Characteristics | Core Customer Requirements |
|---|---|---|
| Raw Water Inlet (Before / After Coarse Screen) | Raw water containing sediment, floating matter and a small amount of suspended solids with good conductivity | Total inlet flow measurement, over-limit early warning, inlet-water accounting and treatment-volume calculation |
| Biochemical Section (Nitrified Liquid Recirculation / Internal Recirculation) | Wastewater containing activated sludge and flocs, conductive with a small amount of bubbles | Closed-loop recirculation-flow control and automatic process regulation |
| Secondary Sedimentation Tank Effluent / Filter Effluent | Clarified water and reclaimed water with low suspended solids and good conductivity | Effluent compliance measurement, total-volume statistics and online environmental reporting |
| Clean Water Pipe Network / External Reclaimed Water Supply | Clean water and demineralized water with very few impurities | Precision trade measurement and regional pipe-network leakage monitoring |
| Sludge Pipelines (Return Sludge / Excess Sludge) | High-solid mud-water mixture, viscous, conductive and prone to wall deposition | Sludge proportion control and sludge-discharge measurement to reduce siltation and blockage risk |
| Chemical Dosing Pipelines (PAC / PAM) | Low-flow chemical solution, clean and conductive | Precision low-flow dosing and automatic proportioning |
| Aeration / Steam Pipelines | Air and saturated steam, gaseous media without conductivity | Air-volume and steam-energy-consumption measurement |
General Medium Adaptation Principles
Electromagnetic Flowmeter
Suitable for conductive liquids with conductivity of at least 5μS/cm. It can be used for wastewater and sludge containing solids and flocs. It is not suitable for gas, oil or extremely low-conductivity pure water.
Turbine Flowmeter
Suitable for clean, low-impurity liquids such as clean water, reclaimed water and chemical solutions. It should not be selected for high-sediment or high-sludge media because of impeller jamming and wear risk.
Vortex Flowmeter
Suitable for gas, saturated steam and clean low-pressure liquids. Measurement can become unstable when the medium contains impurities, viscous substances or a large number of bubbles.
Recommended Measuring Points
| Process Point | Flow Measuring Point | Auxiliary Measuring Points |
|---|---|---|
| Coarse Screen Inlet Main Pipe | Total Inlet Flow | Inlet Channel Liquid Level, Pipeline Pressure |
| Pump Outlet | Pump Discharge Flow | Pump Outlet Pressure, Pump Operating Status |
| Biochemical Internal / External Recirculation Pipeline | Return Sludge and Nitrified Liquid Flow | Tank Liquid Level |
| Secondary Sedimentation Tank Effluent Main Pipe | Effluent Flow (Environmental Online Monitoring) | Effluent Channel Liquid Level |
| Single Filter Outlet / Reclaimed Water Main Pipe | Reclaimed Water Flow | Pipe Network Pressure |
| Sludge Return Pump / Excess Sludge Discharge Pipe | Sludge Flow | Sludge Pipe Pressure |
| PAC / PAM Dosing Pipe | Low Chemical Flow | Chemical Tank Liquid Level |
| Aeration Main Pipe / Branch Air Duct | Air Flow | Air Pressure, Gas Temperature |
| Plant Steam Pipeline | Steam Flow | Temperature and Pressure for Vortex Meter Compensation |
On-Site Measurement Difficulties
Foam and Bubbles
Bubbles are easily entrained in biochemical effluent and recirculation pipelines. Turbine and vortex meters may show severe flow fluctuation. The source document states that electromagnetic meters have better anti-bubble performance and can operate normally when the bubble proportion is ≤10%.
Medium Adhesion and Scaling
Sludge and oily wastewater tend to adhere to pipe walls. Turbine impellers can become stuck by sludge. Electromagnetic meters can use rubber liners and removable electrodes, while vortex probes may be affected by fouling.
Corrosion
For acidic wastewater and chlorinated effluent, correct liner and electrode material selection is critical.
No Power Supply / Remote Well Chambers
Underground pipe networks and unattended pump stations without mains power require battery-powered instruments.
Long-Distance Communication
Where instruments are far from the central PLC or SCADA system, priority can be given to 4-20mA, RS485 Modbus and NB-IoT wireless transmission.
Solid Particles
Sediment in raw water and sludge can rapidly wear turbine meters and erode vortex probes.
Negative / Low Pressure and Pulsating Flow
Pulsating flow at pump outlets can cause measurement drift for turbine and vortex meters.
Recommended Flowmeter by Measuring Point
| Measuring Point | Recommended Instrument | Configuration / Selection Rationale |
|---|---|---|
| Raw water inlet main pipe, pump outlet, biochemical recirculation, secondary sedimentation effluent and sludge pipeline | Split Electromagnetic Flowmeter | Rubber liner for wastewater/sludge; 316L or Hastelloy electrode according to corrosion conditions. Suitable for conductive wastewater and sludge, resistant to sediment and bubbles, with no moving parts and low blockage risk. Split type is suitable for humid underground environments. |
| Reclaimed-water pipe network, small chemical dosing pipes and low-impurity clean water | Liquid Turbine Flowmeter | Suitable for clean media without large particles. The source document specifies 0.5-grade accuracy for suitable models, supporting trade measurement and precision low-flow dosing. |
| Aeration main air pipe and plant saturated steam pipeline | Vortex Flowmeter with Temperature & Pressure Compensation | Suitable for gas and steam. Temperature and pressure compensation supports conversion to standard flow, with no moving parts for long-term gas measurement. |
| Unpowered remote pipe-network measuring points | Battery-Powered Integrated Electromagnetic Flowmeter | No AC220V power required. The source document specifies a built-in lithium battery and NB-IoT wireless upload for underground wells and unattended pump stations. |
Installation and Access Scheme
Electromagnetic Flowmeter

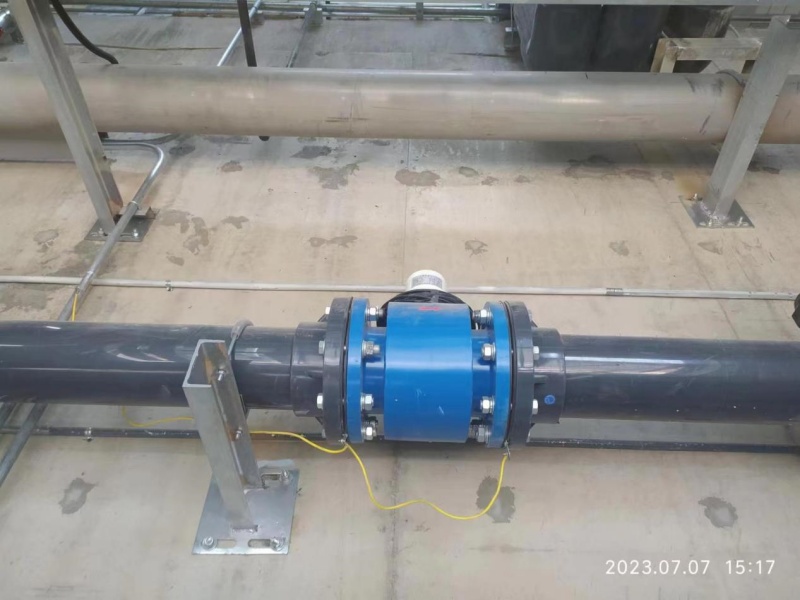

Pipe installation: Flange installation. The source document recommends 5D upstream and 3D downstream straight-pipe sections and avoiding positions immediately after pumps or elbows. Sludge pipelines are preferably installed horizontally. Insertion electromagnetic meters can be considered for large-diameter pipelines to reduce project cost.
Open-channel inlet: Use an open-channel electromagnetic meter or ultrasonic open-channel flowmeter with suitable weir/flume accessories.
Turbine Flowmeter
Flange or clamp installation. The source document recommends 10D upstream and 5D downstream straight-pipe sections. A filter should be installed upstream to prevent impeller jamming, and horizontal installation is required.
Vortex Flowmeter
Flange installation with 10D upstream and 5D downstream straight-pipe sections. Steam applications should use suitable insulation and heat tracing to reduce condensed-water impact on the probe. Severe negative-pressure fluctuation in gas pipelines should be avoided.
Power Supply
Conventional indoor pump room: AC220V.
Underground wells / remote sites without mains power: Lithium battery supply; the source document gives a 3-5 year service-life reference.
Explosion-proof areas: Intrinsically safe DC24V supply.
Output, Protocol and Central-Control Access
Analog: 4-20mA for PLC analog modules.
Digital: RS485 Modbus RTU for multi-instrument bus access.
Wireless: NB-IoT / 4G upload to SCADA or cloud platforms.
Pulse output: Total-flow measurement and trade settlement.
Commissioning, Calibration and Maintenance
Commissioning
Check grounding before power-on. Reliable grounding is mandatory for electromagnetic meters because wastewater applications are susceptible to electrical interference. Verify medium parameters, measuring range, liner and electrode configuration. Conduct zero calibration and communication commissioning to confirm normal upload of real-time and cumulative flow. For steam vortex meters, input the required temperature and pressure compensation parameters.
Calibration
Factory delivery: Third-party calibration certificate.
On-site: Online zero calibration and periodic inspection. The source document recommends annual inspection for trade and environmental monitoring points according to local metrology requirements.
Offline: Calibration using a water-flow standard device.
Maintenance
Electromagnetic meter: Regularly clean sludge from electrodes and inspect liner wear.
Turbine meter: Periodically clean filters and inspect impeller wear.
Vortex meter: Clean deposits from the probe and inspect heat-tracing systems.
Delivered Documents
Factory calibration certificate, installation manual and quality certificate.
After-Sales Support
On-site installation and commissioning guidance, free maintenance within the warranty period, remote fault troubleshooting, spare-parts supply and optional annual maintenance service.
Water & Wastewater Measurement Project Case
Municipal Wastewater Treatment Plant – 50,000 m³/d
Application: Inlet, biochemical recirculation and sludge pipelines.

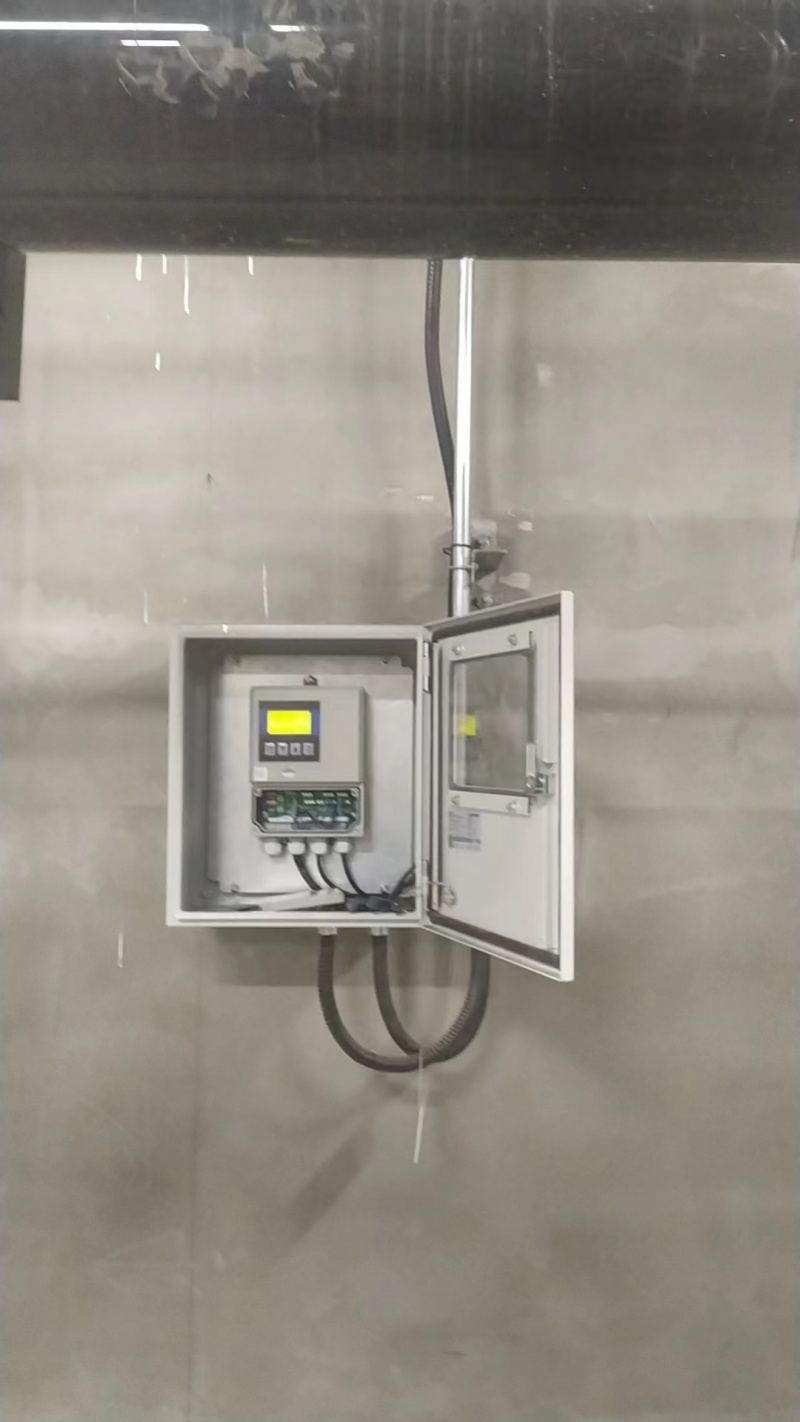

Instrument: Split electromagnetic flowmeters with rubber liner and 316L electrodes.
Operating time: 24 months of stable operation.
Reported results: Stable wastewater measurement without obvious fluctuation under bubble and sludge conditions; qualified accuracy for reclaimed-water trade measurement; low instrument failure rate and small daily maintenance workload while meeting environmental data-upload requirements.
How to Choose a Flowmeter for Water and Wastewater Applications
For conductive wastewater, sewage, sludge and dirty water, electromagnetic flowmeters should normally be evaluated first. For clean water, reclaimed water and low-impurity chemical dosing, turbine flowmeters can provide high accuracy where the medium is clean enough to protect the rotor. For aeration air, compressed air and saturated steam, vortex flowmeters are the more suitable technology among these three options.
Before final selection, confirm pipe diameter, expected flow range, conductivity, solids content, corrosion, pressure, temperature, available straight-pipe length, installation environment, power supply and required communication protocol.
