Tank & Silo Level Monitoring Solution Overview
Tank and silo level monitoring requires different measurement technologies depending on the medium, tank structure, dust, foam, condensation, installation space and maintenance conditions. Ultrasonic level transmitters provide economical non-contact measurement for clean water and ordinary liquid applications. Radar level transmitters are better suited to demanding conditions such as foam, vapor, dust, chemical liquids, powders and bulk solids. Hydrostatic level transmitters measure liquid level through liquid-column pressure and are suitable for submerged measurement in water tanks, sewage pits and underground collection wells.
This solution helps engineers, system integrators and industrial purchasers compare ultrasonic, radar and hydrostatic level measurement technologies for water tanks, sewage tanks, chemical storage tanks, powder silos, ore bins and underground liquid-level monitoring points.
Related products:Ultrasonic Level Transmitter |Radar Level Transmitter |Hydrostatic Level Transmitter |Level Measurement Instruments
Ultrasonic vs Radar vs Hydrostatic Level Measurement
| Technology | Measurement Principle | Contact Type | Suitable Media | Main Advantage | Main Limitation |
|---|---|---|---|---|---|
| Ultrasonic Level Transmitter | Measures distance by air ultrasonic reflection | Non-contact | Clean water, mild sewage and ordinary liquid applications; shallow silos without heavy dust | Economical, easy to install and suitable for conventional clean applications | Dense dust, thick foam and strong condensation can greatly attenuate the signal |
| Radar Level Transmitter | Microwave ranging | Non-contact | Liquids, chemical media, powders, granular and block materials | Wide adaptability, high accuracy and better performance under dust, foam and condensation | Requires correct antenna/material selection and sufficient beam clearance |
| Hydrostatic Level Transmitter | Converts liquid-column pressure into liquid level | Immersed / contact | Clear water, sewage and liquids containing a small amount of impurities | Suitable for submerged liquid monitoring where top installation is difficult | Only applicable to liquids; sediment, crystallization and viscous buildup can affect the probe |
Application Scenarios and Selection Limits
| Instrument Type | Applicable Applications | Medium Characteristics | Core Problem to Be Solved | Not Applicable |
|---|---|---|---|---|
| Ultrasonic level meter | Water treatment, clean water tanks, ordinary sewage tanks, small and simple storage tanks, and shallow silos without large amounts of dust | Clear water and mild sewage; dry conditions without dense dust, continuous thick foam or large amounts of condensed water vapor | Low-cost non-contact liquid-level monitoring, quick deployment and conventional working conditions with limited budget | Dense-dust powder silos, continuous thick-foam media, strong condensation, large volatile steam and severe dust from bulk materials |
| Radar level transmitter | Chemical storage tanks, sewage tanks, fermentation tanks, cement silos, fly ash silos, ore block silos and mixing tanks | Clear water, sewage, acidic and alkaline media, powder, granular materials and irregular block materials; adaptable to foam, dust and moisture | Stable and accurate level measurement in complex working conditions, with reliable data access to automatic-control systems for both liquid and solid materials | Strongly corrosive applications without anti-corrosion selection, extremely narrow spaces where the beam cannot be arranged, and continuous strong material adhesion without a cleaning plan |
| Hydrostatic level transmitter | Municipal sewage, water tanks, sediment-containing water bodies and atmospheric-pressure storage tanks | Liquids only, including clear water, sewage and liquids containing a small amount of impurities | Continuous liquid-level monitoring where top installation is difficult or unavailable; suitable for turbid and impurity-containing water bodies | Powder or block material, easily crystallized viscous medium, high-pressure tanks, strong corrosion without anti-corrosion protection, and media that easily accumulate around the probe |
Typical Tank and Silo Measurement Points
Clean water tank and small atmospheric water tank: Continuous liquid-level monitoring in a clean medium with no foam and little dust.
Sewage tank, regulating tank, aeration tank and mixing reaction tank: Liquid-level monitoring under conditions where scum, foam or water vapor may be present.
Chemical raw-material storage tank: Level monitoring for acid, alkali, solvent and other media where volatility, condensation or partial foam may occur.
Powder silo: Material-level monitoring for cement, fly ash, calcium carbonate, talcum powder and similar materials, with significant dust during loading or unloading and uneven material surfaces.
Block-material or ore bin: Material-level monitoring where the material drop is large, the surface is uneven and dust emission is obvious.
Underground water tank, collection well and enclosed sewage pit: Liquid-level monitoring where top opening conditions are limited and the medium may contain sediment or impurities.
How to Handle Foam, Dust and Limited Installation Space
Foam and Scum
Thin foam or a small amount of scum: High-frequency radar can penetrate the foam. Ultrasonic signals may be absorbed by foam, causing distorted measurement data.
Continuous thick foam or intense stirring: Give priority to high-frequency radar and use a suitable purging device when necessary. Ultrasonic and hydrostatic methods are not recommended for the foam layer itself because foam does not create an effective liquid-column pressure.
Dust
In powder silos with continuous dust generation, frequency-modulated radar has stronger penetration. Ultrasonic sound waves are attenuated by dust and are more likely to lose the echo. Hydrostatic measurement cannot be used for solid powders.
Limited Installation Space
For low tank-top height and compact spaces, 80G radar with a concentrated beam is preferred. Short-range ultrasonic measurement can also be considered for simple conditions. Hydrostatic transmitters can be installed directly at the bottom of a liquid tank or pool without requiring headspace.
Recommended Level Instrument by Measurement Point
| Measurement Point Type | Recommended Instrument | Reasons for Selection | Reference Range |
|---|---|---|---|
| Clean water tank, clean atmospheric water storage tank, no dust and no foam | Ultrasonic level meter | Non-contact, easy installation, high cost-effectiveness, stable measurement of clean water and low maintenance requirements | 0.3~10m |
| Sewage aeration tank, reaction tank and chemical storage tank with foam, water vapor or a small amount of scum | High-frequency radar level transmitter | Microwave measurement can deal with foam and water vapor and is not affected by medium conductivity; suitable for more severe liquid conditions | 0.2~30m |
| Cement/fly ash silo and ore block silo with high dust and uneven material surface | 80G radar level transmitter | Strong adaptability to dust and irregular material surfaces, non-contact measurement and reduced wear compared with immersed/contact methods | 0.5~50m |
| Underground collection well, sewage pit or atmospheric sediment-containing water tank where top opening is unavailable | Hydrostatic level transmitter | Can be installed directly underwater without top opening and is suitable for liquid-only applications with relatively low cost | 0~50m, matched according to pressure range |
Installation, Power Supply and PLC / Modbus Integration
Ultrasonic Level Transmitter
Installation: Install vertically on the tank-top or pool-top flange/bracket. Keep the area below the probe unobstructed and stay away from the feeding port and vortex area.
Power supply: DC24V is the mainstream option for automatic-control systems; some models use AC220V.
Signal output: 4-20mA, RS485 Modbus RTU.
System access: Directly connected to a PLC and can be matched with an RTU for remote platform upload.
Radar Level Transmitter
Installation: Install on a tank-top flange. In powder silos, avoid direct impact of materials on the beam area. Give priority to 80G radar for narrow tanks.
Power supply: DC24V two-wire or four-wire system.
Signal output: 4-20mA, RS485 Modbus RTU; some models support HART.
System access: PLC and DCS direct connection, with support for remote platform collection.
Hydrostatic Level Transmitter
Installation: Place the probe at the bottom of the pool or tank and fix the cable. Avoid strong water erosion and silt accumulation areas. Use a vented cable to ensure atmospheric-pressure compensation.
Power supply: Mainly DC24V two-wire system.
Signal output: 4-20mA, RS485 Modbus RTU.
System access: Direct PLC acquisition, suitable for remote monitoring of collection wells and underground water tanks.
Commissioning, Calibration and Maintenance
Ultrasonic Level Transmitter
Debugging: Set the range and blind zone and shield false echoes.
Calibration: Compare and calibrate once a year under clean-water conditions. The source document does not recommend ultrasonic measurement in heavy-dust or thick-foam environments.
Maintenance: Regularly clean condensation and dust from the probe surface.
After-sales: Regular warranty of 1-2 years, remote parameter debugging and probe replacement if damaged.
Radar Level Transmitter
Debugging: Enter the range and installation height. Powder silos require special debugging, while thick-foam applications require optimization of filtering parameters.
Calibration: Perform initial on-site comparison and calibration, followed by a regular annual review.
Maintenance: Generally low maintenance. For high-adhesion powder, periodically use air blowing to clean antenna deposits.
After-sales: Warranty of 1-2 years, with local button/Bluetooth debugging and remote parameter configuration.
Hydrostatic Level Transmitter
Debugging: Perform zero-point calibration and atmospheric-pressure compensation.
Calibration: Conduct on-site comparison every six months to one year. Increase the calibration frequency where the medium is prone to sedimentation.
Maintenance: Sediment and viscous media require regular removal and cleaning of sludge or scale from the probe to prevent diaphragm failure.
After-sales: 1-year warranty. The diaphragm is a vulnerable component, and spare parts are recommended for projects.
Tank & Silo Level Monitoring Project Cases
Case 1: Clean Water Tank Level Monitoring at a Water Plant
Instrument: GLP-7 ultrasonic level meter.
Working conditions: Clean water reservoir, clean medium, no foam or dust, DC24V power supply and 4-20mA connection to the water-plant PLC system.
Operating time: 4 years of stable operation.

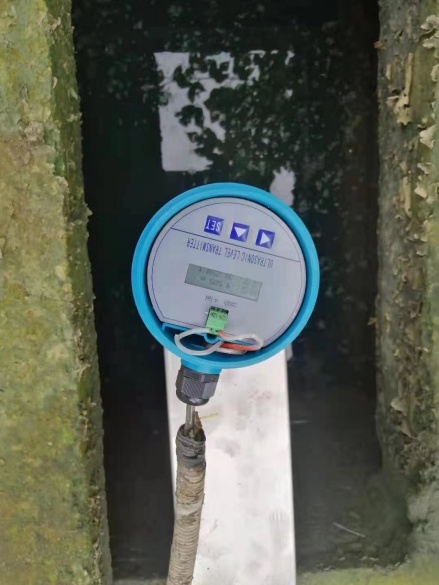

On-site installation: The ultrasonic probe is installed on the top support of the pool, used with a local display instrument and connected to the plant automatic-control cabinet.
Case 2: Sewage Regulating Tank Level Monitoring
Instrument: 26G high-frequency radar level transmitter.
Working conditions: Foam exists for a long period, the water level fluctuates greatly, a support is installed and RS485 Modbus is connected to the PLC.
Operating time: 3 years.

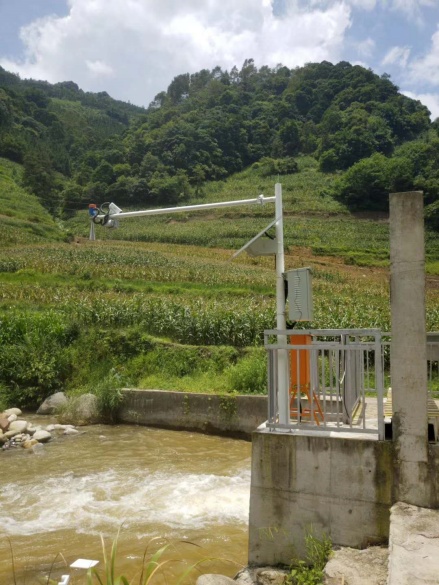

On-site installation: Radar level instrument installed on a field support and connected to the central-control system.
Case 3: Cement Powder Silo Level Monitoring
Instrument: GRD-80G-07 solid radar level transmitter.
Working conditions: Cement silo with continuous dust during loading and unloading, tank-top installation and automatic air blowing.
Operating time: 3 years.
On-site installation: Radar installed on the top flange of the silo.
Case 4: Underground Collection Well Level Monitoring
Instrument: GLP2881 hydrostatic level transmitter.
Working conditions: Underground sewage collection well where top opening is unavailable, medium containing a small amount of sediment, DC24V two-wire system and RS485 connection to PLC.
Operating time: 1 year and 8 months, with quarterly removal and cleaning of probe silt.
On-site installation: The probe is inserted near the bottom of the well, the vented cable is fixed along the well wall and the signal is routed to the ground control cabinet.
How to Choose the Right Tank or Silo Level Monitoring Solution
For clean water tanks and simple atmospheric liquid applications, ultrasonic level measurement is usually the economical non-contact choice. For chemical tanks, sewage tanks, fermentation tanks, powder silos and bulk-solid bins with foam, vapor, dust or uneven material surfaces, radar provides wider adaptability. For liquid-only applications where the top of the tank cannot be opened or where a submerged probe is acceptable, hydrostatic level measurement can provide a practical alternative.
Before selecting a level transmitter, confirm the measured medium, tank or silo height, temperature and pressure, foam or dust conditions, installation opening, required output signal and the PLC/DCS or remote communication method.
